This project is based on an article in the German magazine “FUNKAMATEUR”
(FA 1/18 Pg. 38) by DC5ZM. The main module is a small PCB with the AD8318
for input levels from -58 dBm to -1 dBm up to 5,8 GHz. An ARDUINO NANO,

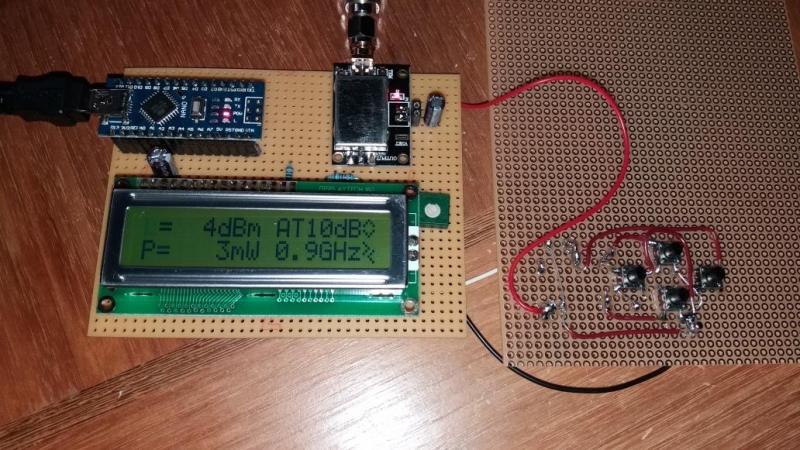

a LCD 2 x 16 and 4 pushbotton switches are used to control the meter.
- Analog Devices AD8318 Datasheet and Product Info
- Here is a wiring diagram of my RF POWER LEVEL METER
